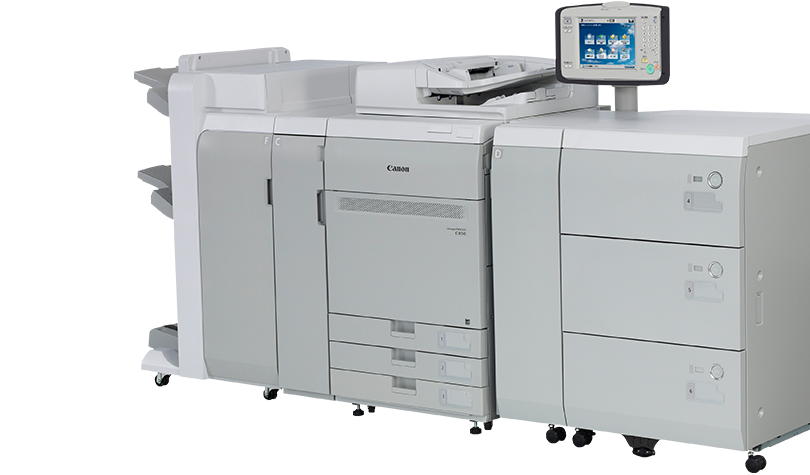

Canon imagePRESS C850 Series
Specifications

imagePRESS C850: up to 85 ppm
imagePRESS C750: up to 75 ppm

imagePRESS C850:  15,000 to 150,000 pages (A4)
imagePRESS C750:  15,000 to 120,000 pages (A4)

imagePRESS C850:  Up to 500,000 pages (A4)
imagePRESS C750:  Up to 400,000 pages (A4)

Front to Back: 1.0 mm or less

Colour Laser Beam Printing

2,400 dpi x 2,400 dpi, 256 gradations

Standard: 3 x 550-sheet cassettes (80 gsm)

Option: 100-sheet multi-purpose tray

POD Deck Lite-C1: 1 x 3,500 sheet side paper deck (A4/A3/SRA3)

POD Deck Lite XL-A1: 1x 3,500 sheet side paper deck (A4/A3/SRA3), 1x 1,000 sheets of length > 487.7 mm

Multi-drawer Paper Deck-C1: 1 x 6,000 sheet (3 x 2,000 sheets - A4/A3/SRA3)

7,650 sheets (A4/A3)

11,200 sheets (A4, 80 gsm)

Cassettes:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Bond, Letterhead, Tab paper*, Transparency, Envelopes**

Multi-purpose tray :

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Coated paper, Pre-punched paper, Tab paper, Bond, Transparency, Label, Envelopes, Letterhead

Optional paper decks:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Coated paper , Textured, Bond, Transparency, Label, Letterhead, Tab paper, Envelopes**

* Requires Tab feeding attachment

** Requires Envelope feeding attachment

Multi-purpose tray and Paper cassette 1/2/3

Standard size: A4, A4R, A5R, A3, SRA3, 13"x19"

(330 x 483 mm)

Free size: 100 x 148 mm to 330.2 x 487.7 mm

Envelopes: No.10 (COM10), Monarch, ISO-C5, DL

POD Deck Lite-C1

Standard size: A4, A4R, A5R, A3, SRA3, 13"x19"

(330 x 483 mm)

Free size: 139.7 x 148 mm to 330.2 x 487.7 mm

Envelopes: No.10 (COM10), Monarch, ISO-C5, DL

POD Deck Lite XL-A1

Standard size: A4, A4R, A5R, A3, SRA3, 13”x19”

(330 x 483 mm)

Free size: 139.7 x 148 mm to 330.2 x 487.7 mm

Long sheet: 210 x 487.8 mm to 330.2 x 762 mm

Envelopes: No.10 (COM10), Monarch, ISO-C5, DL

Multi-drawer Paper Deck-C1

Standard size: A4, A4R, A5R, A3, SRA3, 13”x19”

(330 x 483 mm)

Free size: 139.7 x 182 mm to 330.2 x 487.7 mm

Envelopes: ISO-C5

Cassettes: 52 to 220 gsm

Multi-purpose tray/Optional paper decks : 52 to 300 gsm

Duplex: 52 to 300 gsm

Validated heavier stocks supported for POD Deck Lite C1 and POD Deck Lite XL A1*

Approx. 360 seconds

USB 2.0 Hi-speed
Ethernet: 1000 BaseT/100Base -TX/10Base-T
Standard: 1 x USB Host
*1 on left side of PRISMAsync operation panel

TCP/IP* (LPD/Port 9100/WSD/IPP/IPPS/SMB/FTP), IPX/SPX (NDS, Bindery), AppleTalk
*IPv4/IPv6 support

1.66 GHz (SOC ARM 1136JF-S 400 MHz, ARM 946 200 MHz)

1.5GB（SOC 2GB)

Standard 1TB Hard Disk Drive

Upright Control Panel G1: 26.4 cm (10.4 inch) TFT SVGA LED Backlight Colour Uplight Touchscreen

Operating Panel-A5: 15 inch touch panel screen

1,952 mm* x 934 mm x 1,424 mm** (W x D x H)
* Includes Operator Panel and Out put tray option
** Includes Operator Panel Height to ADF is 1,222.2mm

1,952 (W) x 1,624 (D) mm

Approx 316kg *includes ADF

Temperature: 20 to 27ºC (50 to 86ºF)
Humidity: 15 to 60 % RH (no condensation)

220-240 V (±10 %), 50/60 Hz (±2 Hz), 16A x 2 *All Europe
220-240 V (±10 %), 50/60 Hz (±2 Hz), 13A x 2 *UK

Maximum:  Approx 1,560W (at power supply) or less + 2,500W (at fusing unit) or less
Plug In-Off mode: Approx. 1.0Wh or less
Sleep mode: Approx. 1.5Wh or less
Typical Electricity Consumption (TEC) rating: 10.7kwh in imagePRESS C850 85ppm; 9.9kwh in imagePRESS C750 75ppm

Sound Pressure
Active: 75dB or less, Standby: 58dB or less

Optional

imagePRESS Server H300 (External Fiery based server)
imagePRESS Server G200  (Embedded Fiery based server)

PCL5/6 (Driver & utility support : Only for embedded/ PCL interpreter is available on external Fiery server)
Adobe PostScript Level 4

1,200 dpi x 1,200 dpi, 600 dpi x 600 dpi

External Fiery based server: 2 x 2 GB
Embedded Fiery based server: 1 x 4 GB

External Fiery based server: 2 x 1 TB
Embedded Fiery based server: 1 x 500 GB

External Fiery based server: Up to 3.6 GHz (Intel Core i5‐2400)
Embedded Fiery based server: 3.3 GHz （Intel Pentium G850)

138 Adobe PS fonts, 113 PCL fonts, 32 barcode

Windows: 7,8/8.1,10,Server 2008/2008R2, Server 2012/2012R2/2016
MacOS: 10.9,10.10,10.11,10.12

Ethernet 1000 Base-T/100Base-TX/10Base-T, USB, DVI connector (only for H300), Display Port connector (only for H300)

TCP/IP, AppleTalk (only support font downloader), Bonjour, SNMP, IPP, FTP, SMB, IPv6,WSD(minimum support to achieve WHQL certification)

Impose and Compose, GA Package Premium Edition (For H300), Productivity Package (For G200), Removable HDD Kit (For H300)

Optional

PRISMAsync iPR C850 Series

Postscript L3, PDF 1.7, IPDS (transactional), PCL/PJL (transactional)

PS/PDF: 600 x 600 dpi or 1,200 x 1,200 dpi, transactional PCL: 600 x 600 dpi, transactional IPDS: 600 x 600 dpi

1 x 8GB DDR3

2 x 3.5” SATA II, 500GB, 7200rpm

2.9 GHz (Intel Quad Core i5-4570S)

136 Type1 fonts for roman languages
User import of PS fonts via Settings Editor
Optional Adobe Asian fonts:
Japanese: 5 Morisawa fonts (no Heisei fonts)
Chinese: 2 fonts for simplified Chinese, 1 font for traditional Chinese
Korean: 1 font for Korean

7 (32/64 bit), Server 2012R2, 8.1 (32/64bit) and 10
MacOS 10.9 (64 bit), MacOS 10.10 (64 bit), MacOS 10.11 (64 bit), Server 2016, MacOS 10.12/13 (64 bit)

Ethernet (10/100/1000 Base-T), USB for files via operator panel, DVI for connection of operator panel

TCP/IP,

SNMP v1/v3, Host resources MIB, System group MIB II,

Printer MIB, Job Monitor MIB, Job Management MIB

submission via lpr, hotfolders, socket, IPP,

JDF/JMF, USB stick

Duplex Colour Image Reader Unit-K1

Optional colour flatbed scan unit and 300-sheet duplex automatic document feeder (One-Pass Duplex Scan)

Colour flatbed plus one-pass duplex automatic document feeder

A3, A4, A4R, A5, A5R, Free sizes (W x L): Min. 139.7 mm x 128 mm, Max. 432 mm x 304.8 mm

Single-sided scanning (BW/CL): 38 to 220 gsm / 64 to 220 gsm;
Double-sided scanning (BW/CL): 50 to 220 gsm / 64 to 220 gsm

Copy:600 dpi x 600 dpi
Send: 600 dpi x 600 dpi/300 dpi x 300 dpi

2-sided to 2-sided (Automatic)

Single-sided (A4, 300 dpi): (BW/CL) 120/120 ipm*
Double-sided (A4, 300 dpi): (BW/CL) 200/140 ipm *
Single-sided (A4, 600 dpi): (BW/CL) 120/70 ipm*
Double-sided (A4, 600 dpi): (BW/CL) 120/70 ipm *

*When PRISMAsync RIP is connected as following.
Single-sided & Double-sided (A4, 600 dpi): (BW/CL) 70/70 ipm

Standard on all models (Requires Duplex Colour Image Reader Unit H1)

100 dpi, 150 dpi, 200 x 100 dpi, 200 dpi, 300 dpi, 200 x 400 dpi, 400 x 200 dpi, 400 dpi, 600 dpi

E-Mail/Internet FAX (SMTP), PC (SMB, FTP), WebDAV. Google Docs with iR-ADV Cloud Connect MEAP application

LDAP (1000) / Local (Max. 500)

TIFF, JPEG, PDF, XPS, High compression PDF/XPS, PDF/A-1b, Searchable PDF/XPS, Office Open XML (PowerPoint, Word)

Universal Send Advanced Feature Set-H1 (option): Create outline PDF (Trace and Smooth), Adobe Reader Extensions PDF (Searchable PDF/XPS is a standard feature.)
Universal Send Security Feature Set-D1 (option): Send encrypted PDF, and add digital device signature to PDF/XPS files.
Universal Send Digital User Signature Kit-C1 (option): Add digital user signature to PDF/XPS files.

85 ppm model: Up to 85/85 ppm (A4/A5R), up to 62ppm (A4R)
75 ppm model: Up to 75/75 ppm (A4/A5R), up to 54ppm (A4R)

Color: Approx 7.7 sec
BW: Approx. 6.9 sec

Reading: 600 dpi x 600 dpi
Printing: 2,400 dpi x 2,400 dpi

Up to 9,999 copies

Zoom: 25-400% in 1% increments
Fixed Zoom Ratio: 25%, 50%, 70%, 100%, 141%, 200%, 400%

Paper Size: A3, A4, A4R, A5R, SRA3, 13”x19”, Free size

(139.7 x 148 mm to 330.2 x 487.7 mm),

Envelopes (No.10 (COM10), Monarch, ISO-C5, DL)

Paper Weight: 52 to 300 gsm

Validated heavier stocks supported*

Paper Capacity: 3,500 sheets (80 gsm) /

4,000 sheets (64gsm)

Dimensions (W x D x H): 717 mm x 686 mm x 574 mm

Weight: Approx. 76 kg

Paper Size: A3, A4, A4R, A5R, SRA3, 13”x19”, Free size

(139.7 x 148 mm to 330.2 x 487.7 mm / 210 x 487.8 mm to

330.2 x 762 mm) , Envelopes (No.10 (COM10), Monarch,

ISO-C5, DL)

Paper Weight:

(Up to 487.7 mm length) 52 to 300 gsm

(Over 487.7 mm up to 762 mm length) 64 to 300 gsm

Validated heavier stocks supported*

Paper Capacity:

(Up to 487.7 mm length) 3,500 sheets (80 gsm) /4,000

sheets (64 gsm),

(Over 487.7 mm up to 762 mm length) 1,000 sheets (80 gsm)

Dimensions (W x D x H): 1,105 mm x 686 mm x 574 mm

Weight: Approx. 113 kg

Paper Size: A3, A4, A4R, A5R, SRA3, 13”x19”, Free size

(139.7 x 182 mm to 330.2 x 487.7 mm), Envelope (ISO-C5)

Paper Weight: 52 to 300 gsm

Paper Capacity: 3 x 2,000 sheets, total 6,000 sheets (80

gsm) / 3 x 2,200 sheets, total 6,600 sheets (64 gsm)

Dimensions (W x D x H): 950 mm x 797 mm x 1,040 mm

Weight: Approx. 155 kg

Paper Size: A3, A4, A4R, A5R, SRA3, 13”x19”, Free size

(100 x 148 mm to 330.2 x 487.7 mm)

Paper Weight: 52 to 300 gsm

Paper Capacity: 100 sheets (80 gsm)

Dimensions (W x D x H): 403 mm (694 mm *) x 518 mm x

352 mm (451 mm *)

*With the Stack Bypass Alignment Tray-C2 and the Long Sheet Tray-B1

Weight: Approx. Approx. 5.5 kg (Approx. 6.7 kg* )

*With the Stack Bypass Alignment Tray-C2 and the Long Sheet Tray-B1

Paper Size: 210 x 487.7 mm to 330.2 x 762 mm

Paper Weight: 52 to 300 gsm

Paper Capacity: 1 sheet

Tray Capacity:

Upper Tray (A) Capacity:

A4/A4R/A5R/A3/SRA3/13”x19” 1,000 sheets

Long sheet (Over 487.7 mm up to 762 mm length) 100

sheets (52-79 gsm) / 50 sheets (80-150 gsm) / 25 sheets

(151-300 gsm)

Lower Tray (B) Capacity: A4 4,000 sheets, A4R 2,000

sheets, A3 1,500 sheets, SRA3 1,000 sheets

Paper Weight: 52 to 300 gsm

Staple Position: Corner, Double

Staple Capacity: A4: 100 sheets, A3/A4R: 50 sheets

Dimensions (W x D x H): 800 mm x 792 mm x 1,239

mm (with Long Sheet Tray : 1,136 mm x 792 mm x 1,239 mm)

Weight: Approx. 130 kg

Power: 220-240V, 50-60Hz, 8A

Tray Capacity / Paper Weight / Staple Position / Staple

Capacity:

same as Staple Finisher-W1 Pro

Booklet stitch paper size: A3, A4R, SRA3, 13”x19”, Free

size (210 x 279.4 mm to 330.2 x 487.7 mm)

Booklet stitch paper weight: Body sheet 52-220 gsm,

Cover sheet 64-300 gsm

Booklet stitch staple capacity: 25 sheets (52-80 gsm,

include cover)

Dimensions (W x D x H): 800 mm x 792 mm x 1,239

mm (with Long Sheet Tray : 1,136 mm x 792 mm x 1,239 mm)

Weight: Approx. 180 kg

Power: 220-240V, 50-60Hz, 8A

Requires either the Booklet Finisher-W1 Pro or Staple

Finisher-W1 Pro

Punch Hole type: BT1: 2 holes and 4 holes (FRN)

selectable, BU1: 4 holes (Swe)

Punch Paper Weight: 52-300 gsm

Punch Paper Size:

2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x

432.0 mm)

4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)

Paper Size: All available size on marking engine

Paper Weight: 52 to 300 gsm

Output Capacity: 250 sheets at simplex/duplex

printing

Dimensions (W x D x H): 422 mm × 382 mm ×

175 mm

Weight: Approx. 1.2 kg

Puncher Unit-BT1/BU1
Requires either the Booklet Finisher-W1 Pro or Staple Finisher-W1 Pro
Punch Hole type: BT1: 2 holes and 4 holes (FRN) selectable, BU1: 4 holes (Swe)
Punch Paper Weight: 52-300 gsm
"Punch Paper Size:
2 holes: A3, A4, A4R, Free size (182 x 182 mm to 297 x 432.0 mm)
4 holes: A3, A4, Free size (257 x 182 mm to 297 x 432 mm)

Paper Size: A3, A4, A4R, A5R, SRA3, 13"x19",

Free size (140 x 182 mm to 330.2 x 487.7 mm)

Paper Weight: 52 to 300 gsm

Output Capacity

Stack tray: 6,000 sheets (80 gsm) in two stacks of 3,000

sheets each

Top Tray: 200 sheets (80 gsm / Up to 330.2 x 762 mm)

Dimensions (W x D x H):

899 mm × 745 mm × 1,040 mm

Weight: Approx. 120 kg

Power: 90-264V, 47-63Hz, 10A

Paper Size: A3, A4, A4R, A5R, SRA3, 13"x19",

Free size (140 x 182 mm to 330.2 x 487.7 mm)

Paper Weight: 52 to 300 gsm

Output Capacity

Stack tray: 6,000 sheets (80 gsm) in two stacks of 3,000

sheets each

Top Tray: 200 sheets (80 gsm / Up to 330.2 x 762 mm)

Dimensions (W x D x H):

899 mm × 745 mm × 1,040 mm

Weight: Approx. 120 kg

Power: 90-264V, 47-63Hz, 10A

Booklet size: 203 x 138 mm to 297 x 216 mm

Booklet thickness: Up to 25mm

Cutting Range: Top/bottom: 6.5 to 39.5mm at each

edge, fore edge: 6.5 to 49.5mm

Body pages:

Sizes: A4, SRA4, Free size (257 x 182 mm to

320 x 228.6 mm)

Paper weight and number of sheets:

Thin Paper (52-63 gsm): 30-200 sheets

Plain Paper (64-80 gsm): 10-200 sheets

Plain Paper (81-90 gsm): 10-150 sheets

Thick Paper (91-105 gsm): 10-150 sheets

Thick Paper (106-163 gsm): up to 10 sheets as insertion

sheet or up to 25mm as thickness of bunch

Cover:

Number of Sheets: 1 sheet

Sizes: A3, SRA3, Free size (257 x 364 mm to 330.2 x

487.7mm)

Paper weight: 90 to 300 gsm

Tray capacity: Approx.127mm or total approx.1,000

sheets of paper as a total

Dimensions : 922 mm x 791 mm x 1,300 mm

Weight Approx. 308kg

Power: 220-240V, 50/60Hz, 3.0A

Number of trays: 2 trays

Paper size: A3, A4, A4R, SRA3, 13"x19",

Free size (182 × 182 mm to 330.2 × 487.7 mm)

Paper Weight: 52 to 300 gsm

Paper Capacity: 200 sheets x 2 trays (80 gsm)

Dimensions (W x D x H): 336 mm (746 mm including Tray)

× 793 mm × 1,407 mm

Weight: Approx. 61kg

Power: 100-240V, 50/60Hz, 1.0A

(Z-Fold) Paper Size: A3, A4R, Paper Weight: 52 to 105

gsm, Output Capacity: same as Staple/Booklet Finisher-W1

Pro

(C-Fold) Paper Size: A4R, Paper Weight: 52 to 105 gsm,

Output Capacity: 40 sheets (81.4 gsm)

(Accordion Z-fold) Paper Size: A4R, Paper Weight: 52 to

105 gsm, Output Capacity: 40 sheets (81.4 gsm)

(Double parallel) Paper Size: A4R, Paper Weight: 52 to 90

gsm, Output Capacity: 25 sheets (81.4 gsm)

(Half fold) Paper Size: A4R, Paper Weight: 52 to 105 gsm,

Output Capacity: same as Staple/Booklet Finisher-W1 Pro

Dimensions (W x D x H): 336 mm × 793 mm × 1,190 mm

Weight: Approx. 71 kg

Requires Booklet Finisher-W1 Pro

Trim Width: 2-28mm

Trim Thickness: Up to 50 sheets (include cover)

Paper Weight: 52 to 300 gsm

Chip tray capacity: Approx. 5,000 sheets (Trim width

20mm, A4, 80 gsm)

Dimensions (W x D x H): 2,095 mm (including joint,

conveyor and output tray) x 790 mm x 1,040 mm

Weight: Approx. 178 kg

(including conveyor and output tray)

Requires Booklet Trimmer-F1

Trim Width: 2-15 mm

Trim Thickness: Up to 50 sheets (include cover)

Paper Weight: 52 to 300 gsm (Trim 60 to 300 gsm)

Chip tray capacity: Approx. 1,500 sheets (Trim width

15mm, A4, 80 gsm)

Dimensions (W x D x H): 2,312 mm (including Booklet

Trimmer-F1) x 790 mm x 1,040 mm

Weight: Approx. 145 kg

Power: 220-240V, 60Hz, 2.3A

Paper Weight:

(Punch/Through) 75-300 gsm (Plain paper), 118-300

gsm (Coated paper)

(Crease) 157-300 gsm (Plain paper / Coated paper)

Paper Size:

(Through) 100 x 148 mm to 330.2 x 762 mm

(Punch) SRA3, A3, SRA4, SRA4R, A4, A4R

(Crease) SRA3, A3, A4R, 13”x19”, 13”x19.2”

Punch Tools:

Plastic Comb 21-Hole, Twin Loop 23-Hole (Round/

Rectangle), Twin Loop 34-Hole (Round/Square), Color

Coil 47-Hole, Velo Bind 12-Hole, Loose Leaf 4-Hole Punch,

Loose Leaf 2-Hole Punch, Loose Leaf 4-Hole (Swedish),

Loose Leaf 3-Hole, Crease

Dimensions (W x D x H): 445 mm x 795 mm x 1,040 mm

Weight: Approx. 102kg

Power: 230V, 50Hz, 1.9A

(only compatible with C750)

Tray Capacity:

Upper Tray (A) Capacity: A4/A5R 1,300 sheets, A4R/

A3/SRA3/13”x19” 650 sheets, Long sheet (Over 487.7

mm up to 762 mm length) 100 sheets (52-79 gsm) / 50

sheets (80-150 gsm) / 25 sheets (151-300 gsm)

Lower Tray (B) Capacity: A4 2,450 sheets, A5R 1,700

sheets, A4R/A3 650 sheets, SRA3/13”x19” 650 sheets

Paper Weight: 52 to 300 gsm

Staple Position: Corner, Double

Staple Capacity: A4: 50 sheets, A3/A4R: 30 sheets

Dimensions (W x D x H): 644 mm (Max 761*) x 656 mm

x 1,121 mm (with Long Sheet Tray : 939 mm x 656 mm

x 1,121 mm)

*when the auxiliary tray is extended.

Weight: Approx. 48 kg

(only compatible with C750)

Tray Capacity / Paper Weight / Staple Position / Staple

Capacity: same as Staple Finisher-T1

Booklet stitch paper size: A3, A4R

Booklet stitch paper weight: Body sheet 60-220 gsm,

Cover sheet 60-256 gsm

Booklet stitch staple capacity: 16 sheets (60-81 gsm,

include cover)

Dimensions (W x D x H): 646 mm (Max 761*) x 656 mm

x 1,121 mm (with Long Sheet Tray : 939 mm x 656 mm

x 1,121 mm)

*when the auxiliary tray is extended.

Weight: Approx. 72 kg

Requires either the Staple or Booklet Finisher-T1.

Punch Hole type: 2 holes and 4 holes (FRN)

selectable

Paper Weight: 52-256 gsm

Paper Size: 2 holes: A3, A4 4 holes: A3, A4

Dimensions (W x D x H): 107 mm x 615 mm x 825 mm

Weight: Approx. 7.7 kg

Requires either the Staple or Booklet Finisher-T1.

Punch Hole type: 4 holes (SWE)

Paper Weight: 52-256 gsm

Paper Size: A3, A4, A4R

Dimensions (W x D x H): 107 mm x 615 mm x 825 mm

Weight: Approx. 7.7 kg
