SUBMISSION
Multi channel intput
LPD, Raw socket, Hot Folder, FTP, SAP ( PrintKey), JDF/JMF, command line
Data
Line data, PS, PCL, XML, CSV ...
DELIVERY
Multi channel output
Printer, eMail, Fax, Archive, Output folder
Data
PostScript, PCL, PDF
Multiple output
Multiple outputs per incoming jobs
Accounting
One record per output
SCHEDULING
Control
Input channel, queue, device and job managenent
Job scheduling
FIFO, Priority, custom
Load balancing
Round robin, bestchoice printing
Redirection
job, device
PROCESSING
Recognition
Job properties, metadata
Routing
Rule based
Processings
split, data conversion, workflow, multiple processings per incoming job
Eform Applications
Inspire (GMC), PlanetPress(Objectif Lune), Transform (BottomLine)
PDF/PCL-FormMerge ( )
Sort and merge
Job store
MONITORING

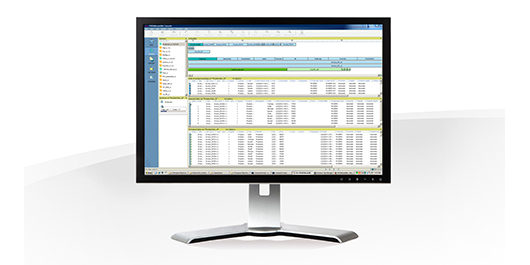

Console
Native, remote

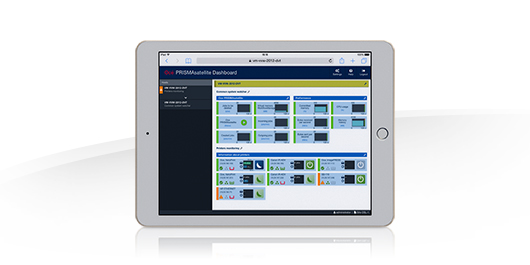

Dashboard
Monitor one or more systems running PRISMAsatellite
Monitoring agent
Take automatic action on job error
Job tracking agent
Track modification of job status
SNMP agent
Report about input channel,queue and device status
MINIMUM SYSTEM REQUIREMENTS
Processor
Intel quad core, hyper threading - maximum 4 CPUs
System Memory
8GB DDR3 or more
Hard Drive
SSD SATA3 or equivalent. 30 GB to install the software and run production; additional space required for customer data
Ethernet Capability
100/1000 Mb/sec
Display
LCD Monitor
Input Devices
Keyboard and Mouse
SOFTWARE REQUIREMENTS
Operating System
Windows Server 2003 SP2 Standard Edition (32-bit and x64) , 2008 Standard Edition (32-bit and x64), Windows Server 2012 R2
Virtualisation
Vmware ESX 4, Vmware ESX 5
Data base
MS SQL server Express 2008 R2,MS SQL server Express 2012 R2
Disclaimer
All specifications subject to change without notice.
[1] , PRISMAsatellite are registered trademarks of -Technologies.
[2] Adobe®, Adobe® PDF and PostScript® 3™ are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
[3] Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
All other trademarks are the property of their respective owners.
